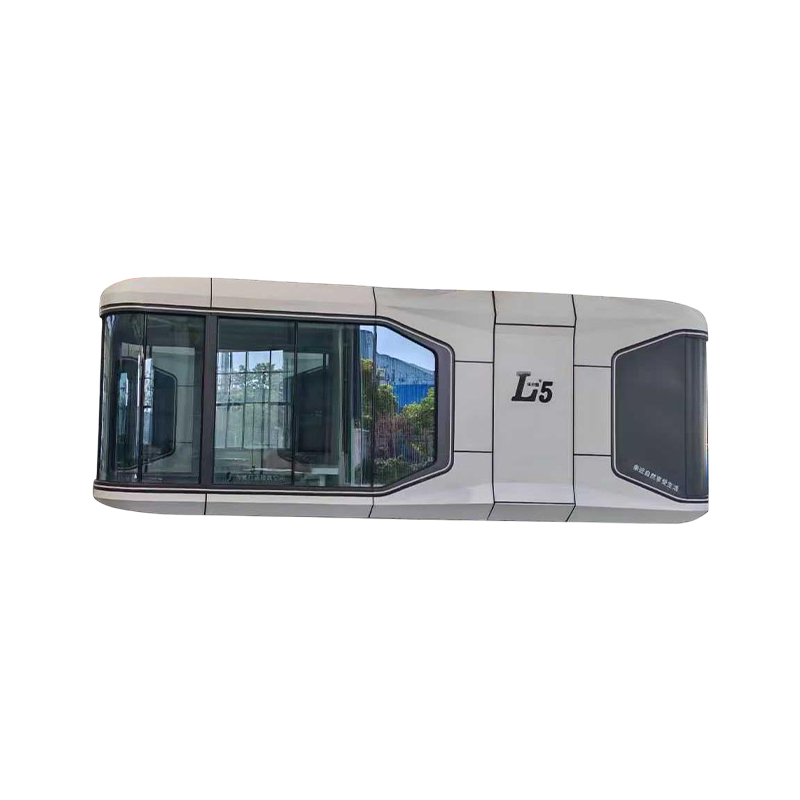

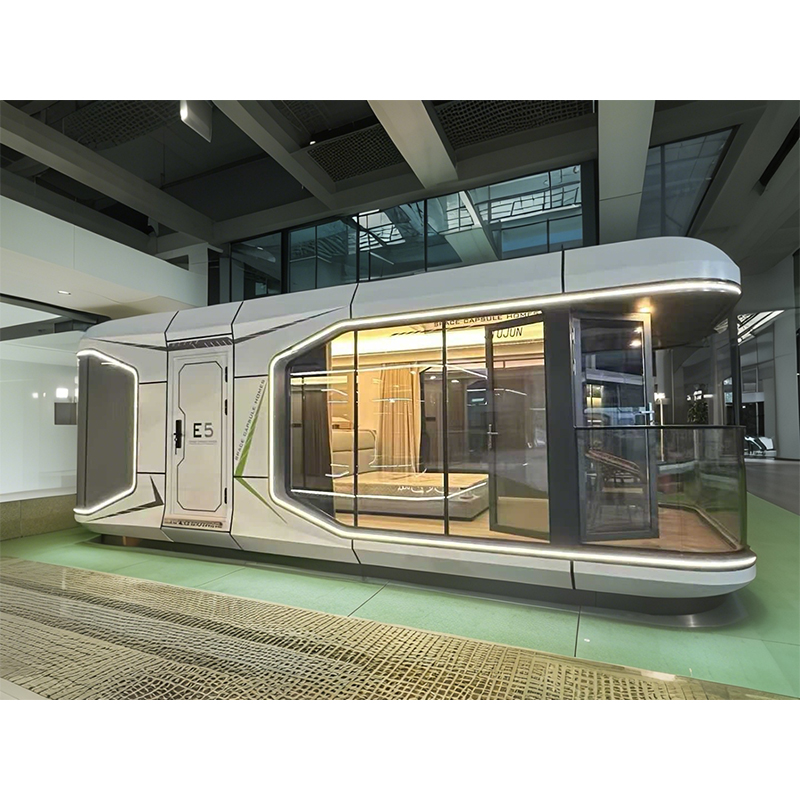

Space Capsule
TK-E7
Prefabricated steel structure custom prefabricated house.Space capsule.Apple cabin.Prefabricated Movable House.Space Capsule Containers Villa Tiny Home.

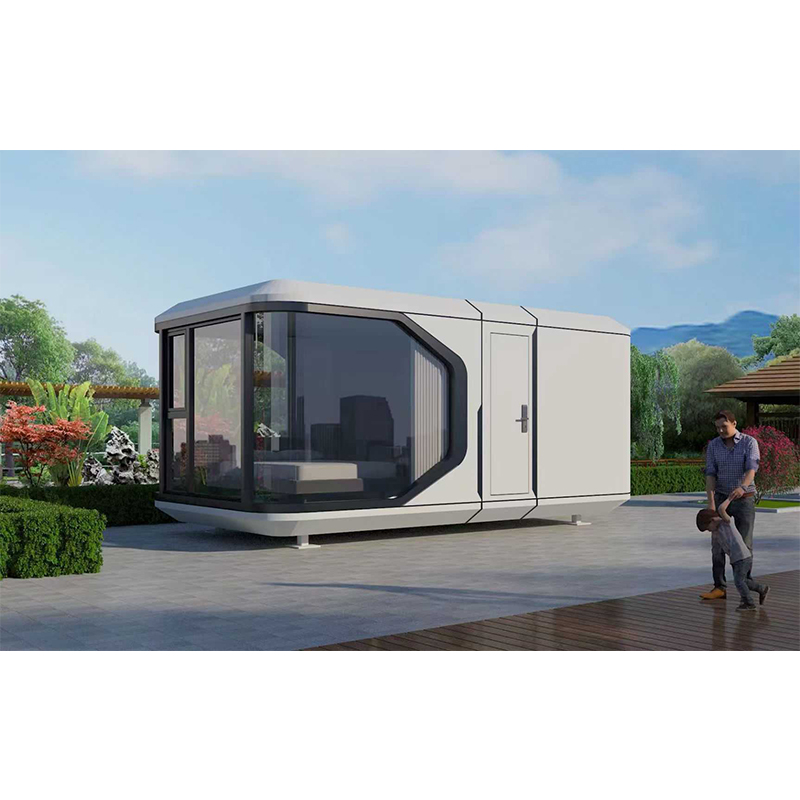

1. Sci-fi shape and compact structure
Streamlined appearance design
The overall shape is capsule or cylindrical, with smooth lines, simulating the appearance of a spacecraft, and is very futuristic. The dimensions are usually:
Diameter: 2-3 meters, length: 4-6 meters, the usable area of a single cabin is about 8-15㎡, and it can accommodate 1-4 people (depending on the internal layout).
Advantages: Reduce wind resistance, suitable for outdoor windy environment, while reducing visual presence, and highly integrated with natural landscape.
Ultimate use of space
Adopts bunk beds, folding furniture, embedded storage and other designs, for example:
Built-in storage cabinets at the head of the bed, drawers under the seats, and folding tables installed on the wall.
Some high-end cabins are equipped with lifting beds, which can be folded up during the day to release activity space.
Data: A 10㎡ cabin can realize multi-functional integration such as sleeping, office, bathroom, storage, etc., and the space utilization rate is more than 90%.
2. Modularization and rapid construction
Factory prefabrication, on-site assembly
The cabin completes the integrated production of the main structure, water and electricity pipelines, and decoration in the factory. After being transported to the site, it only takes 2-4 hours to complete the hoisting and interface docking (such as power and drainage systems).

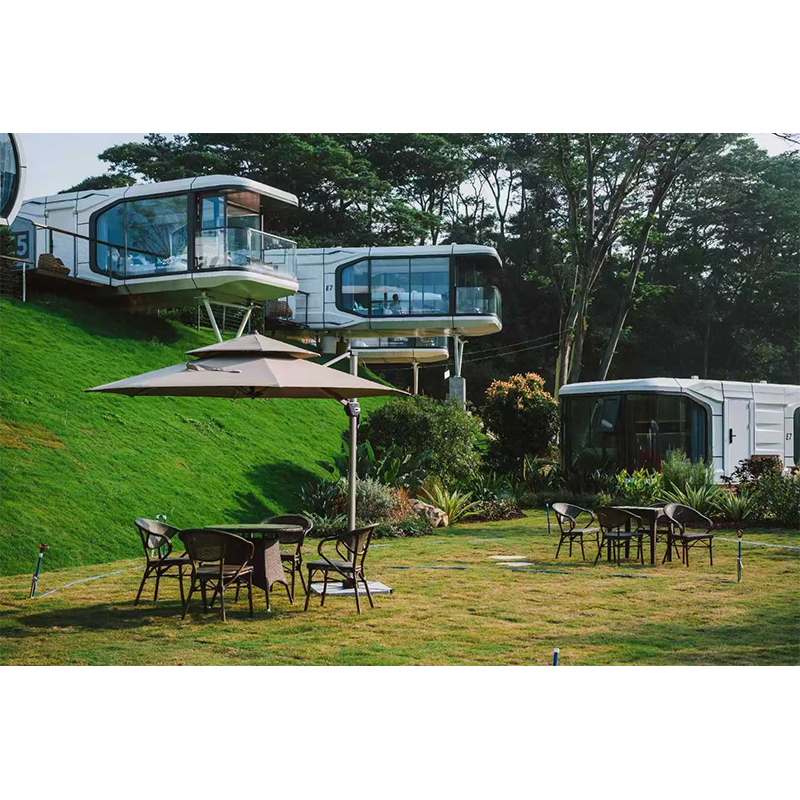

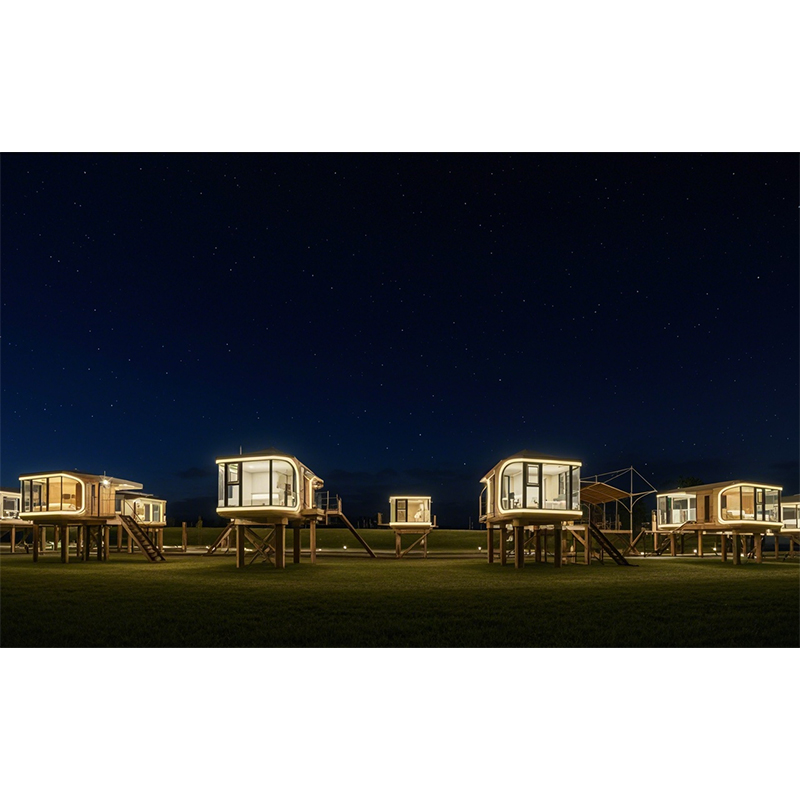

Scenario: The scenic spot homestay cluster can complete the construction of 10-20 cabins within a week, greatly shortening the construction period.
Flexible combination and expansion

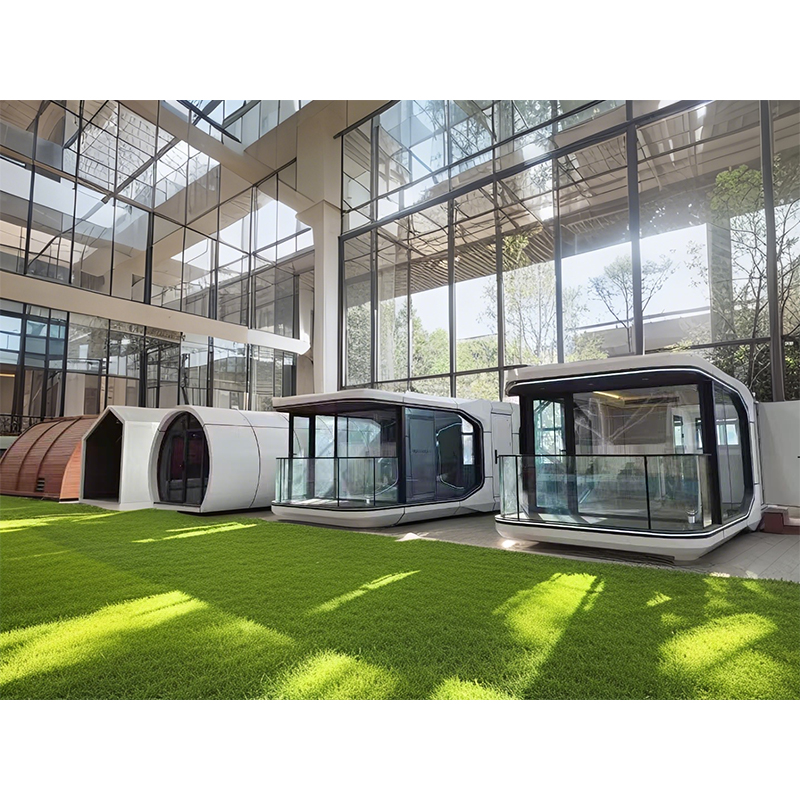

A single cabin can be used independently, or multiple cabins can be connected in series through corridors, sky bridges and other structures to form a "space capsule community", for example:
Two cabins are connected in parallel to create a "one bedroom and one living room", and three cabins are superimposed to form a three-dimensional duplex space.
3. Intelligence and technological configuration
Whole-house intelligent control system
Equipped with an IoT central control panel, one-click control:
Lighting: warm light/cold light adjustment, starry sky ceiling atmosphere light.
Temperature control: air conditioning, floor heating linkage, support remote APP preset temperature (such as -10℃–40℃ wide temperature operation).
Sunshade: electric curtains, smart dimming glass (one-click switch between privacy and lighting).
Application of high-tech materials
Shell: Made of aviation-grade aluminum alloy and carbon fiber composite materials, it is both lightweight (single cabin weight 1.5-3 tons) and high-strength (can withstand 1 ton of snow load).
Insulation layer: filled with polyurethane foam material (thermal conductivity ≤ 0.02W/(m・K)), combined with vacuum insulation panels, to achieve "warm in winter and cool in summer".
Energy self-sufficiency
Some high-end products integrate solar panels and small wind turbines, and with lithium battery energy storage systems, they can operate independently from the power grid, with an average daily power generation of 5-10 degrees, meeting the basic electricity needs of lighting and household appliances.
IV. Adapt to extreme environments
Wind and earthquake resistance
The structural design can withstand a 10-level typhoon (wind speed 24.5m/s) and a 7-degree earthquake. The bottom is equipped with a ground anchor fixing device, which is highly safe for outdoor use.
Extreme climate adaptability
Cold areas: built-in electric heating system, antifreeze treatment of pipes, normal use at -30℃.
High temperature and high humidity areas: the shell coating contains nano-insulation materials, the indoor temperature is 5-8℃ lower than the outdoor temperature, and a dehumidifier is used to keep the air dry.
Lightweight and low environmental impact

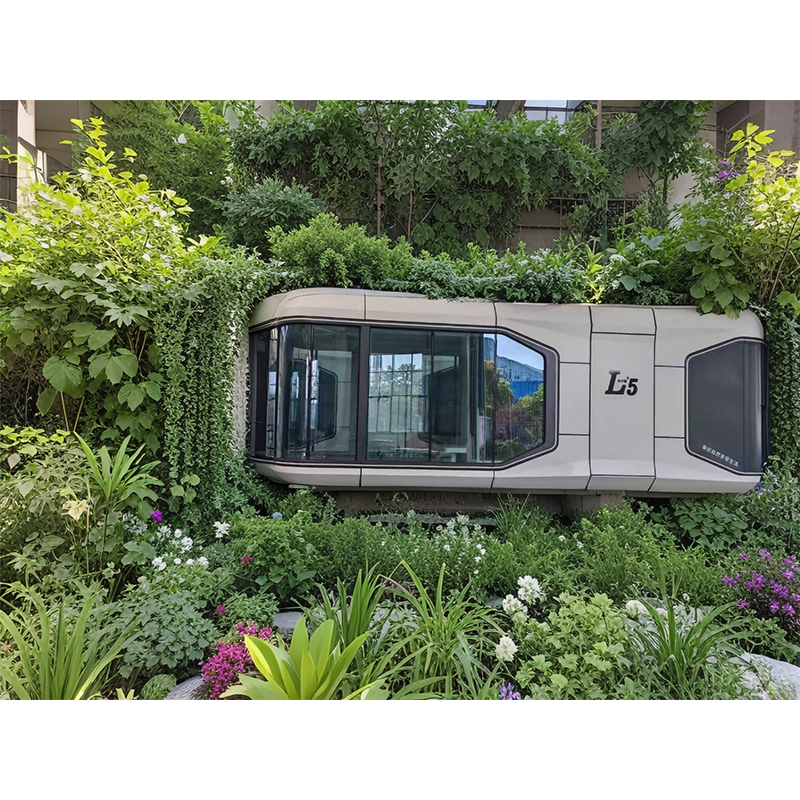

No large-scale excavation of the foundation is required, it can be placed directly on the flat ground or steel frame base, with minimal damage to the natural environment, suitable for sensitive areas such as ecological protection areas and mountainous areas.
V. Multifunctional scenario application
Scenario Typical configuration Advantages
Tourist homestay Panoramic floor-to-ceiling windows, starry skylights, outdoor terraces Attract tourists to check in and enhance the differentiated competitiveness of scenic spots
Emergency residence Medical equipment interface, air purification system, compressed food storage cabinet Quickly deployed in disaster areas to provide temporary safe shelter

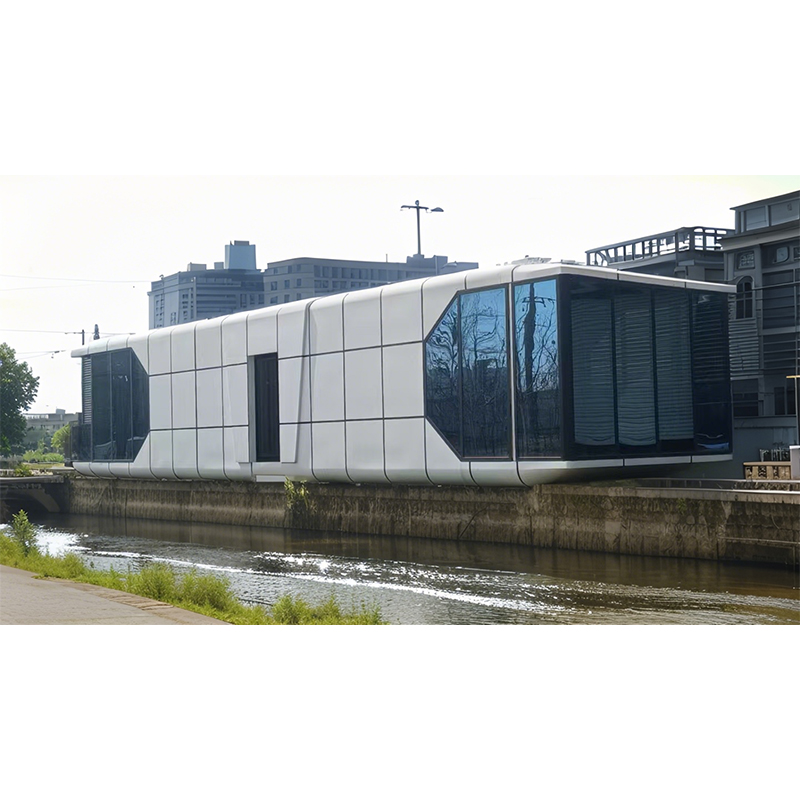

Urban micro-residence Smart toilet, mini kitchen (induction cooker + small refrigerator) Solve the needs of urban youth for small apartments with low rental costs
Scientific research workstation Anti-static floor, equipment integration rack, data transmission interface Suitable for field scientific research observation stations and astronomical observation points
VI. Development trend
Sustainability upgrade: Combine biodegradable materials and rainwater collection systems to achieve "zero emission" ecological cabins.
Metaverse fusion: Virtual starry sky dome to create an immersive living experience.
Modular customization: Provide DIY interior components, users can freely match furniture styles and functional modules.
Size: Customized size
Building area: Customized.
Total net weight: >4 tons.
Structure and material: Galvanized steel frame system, fluorocarbon sprayed aluminum alloy shell module, hollow tempered glass window, standard swing entrance door.
Other performance: 12-level wind resistance, 7-level earthquake resistance, service life of 50 years.

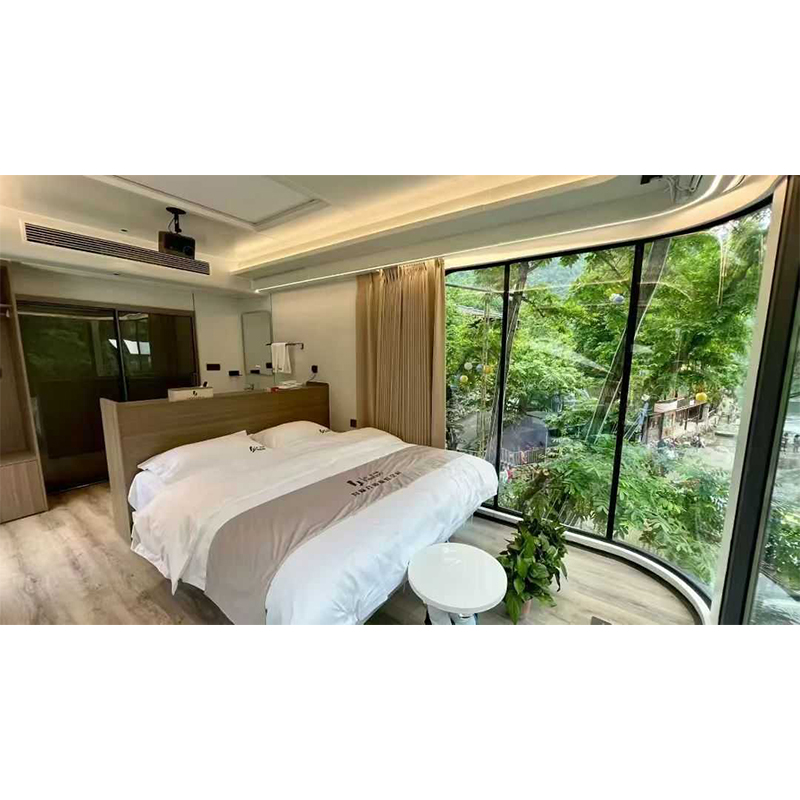

Size: Usually the interior space is compact, the specific size varies depending on the design, generally can meet basic accommodation needs, with beds, seats and storage space, etc.

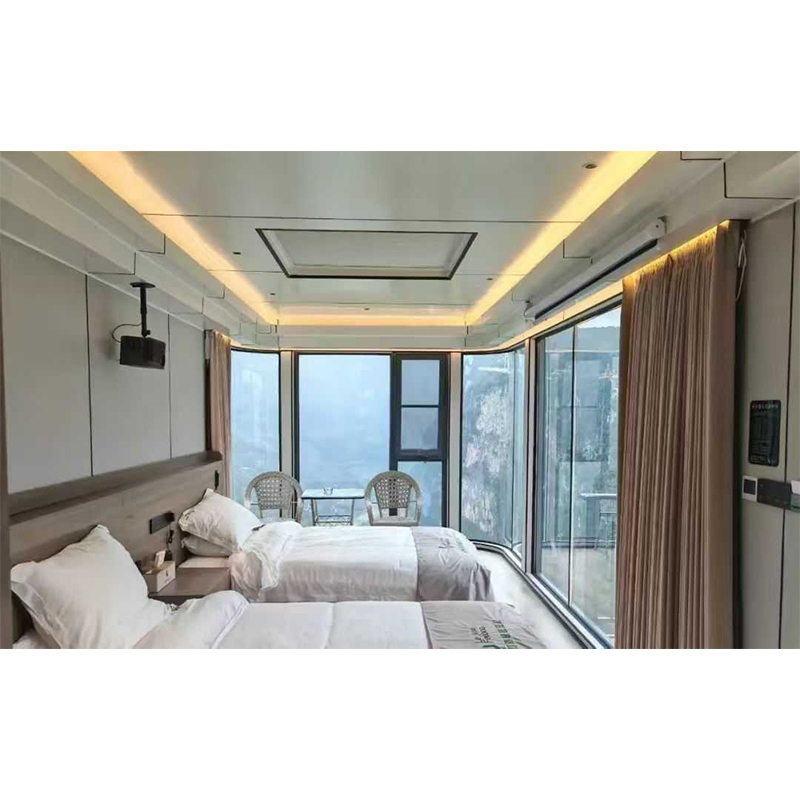

Starry sky decoration: Through lighting and projection technology, the ceiling creates a feeling of being in the night sky, with hundreds of small lights or stars projected.
Technology configuration: Intelligent control system is often used, which can control the lighting, music, temperature, etc. in the room through mobile phones or remote controls.
