Portable Toilet
WC-1
Modular Temporary Toilet System.Mobile Sanitary Facility.Portable Container Toilet System.Toilet Cabin Luxury Mobile.Public bathroom toilet.Public camping portable outhouse.
1. Portable and flexible, quick deployment
Lightweight and easy to move
The main structure is made of lightweight materials (such as aluminum alloy, plastic composite materials), and the weight of a single set is usually 200~500kg. It can be transported by forklift, crane or manpower, suitable for rapid transfer to different venues.
Some models support modular disassembly, occupying less space during transportation, and one truck can load multiple sets.
Ready to use
No complex infrastructure is required, only the ground needs to be leveled on site, and the installation can be completed in 10~30 minutes. It can be used after connecting to the water source (or bringing your own water tank) and power supply.
2. Compact structure and efficient space

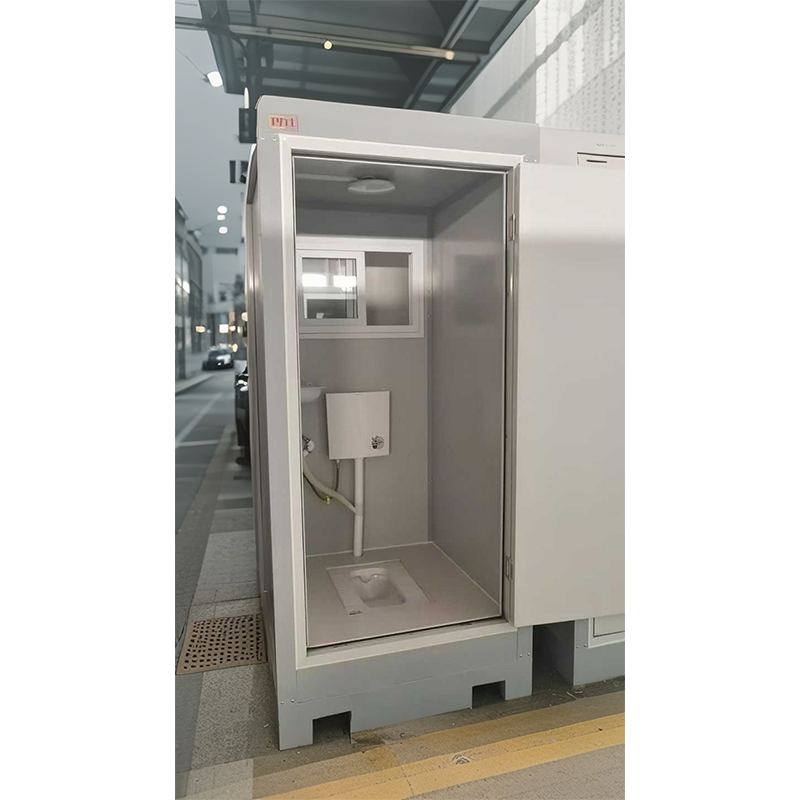

Miniature design
The size of a single toilet is usually 1.0×1.2×2.3 meters (length × width × height), occupying less than 2 square meters, which is suitable for narrow spaces (such as exhibition corridors and street corners).

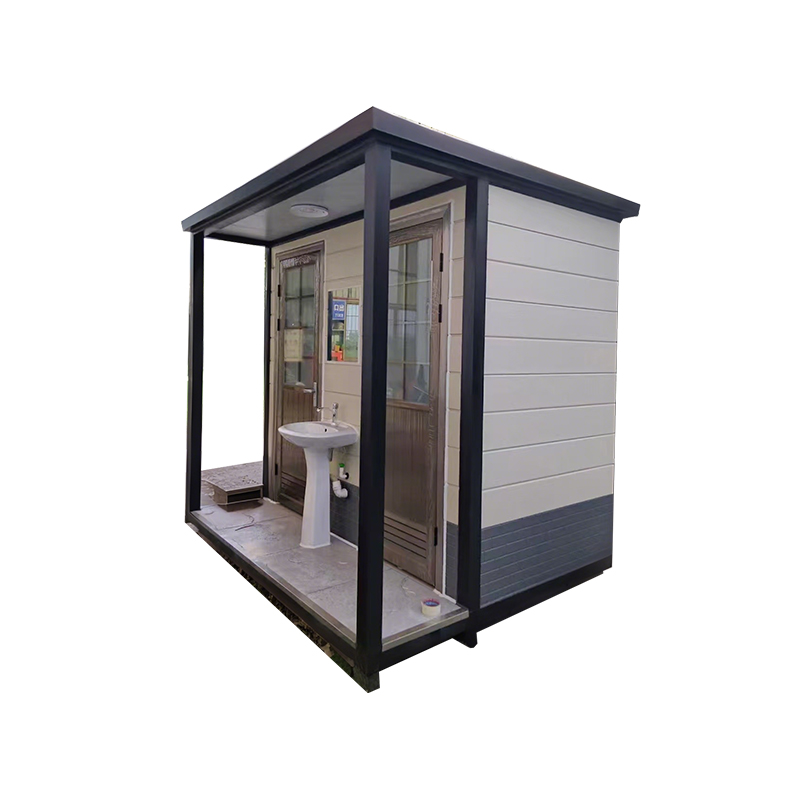

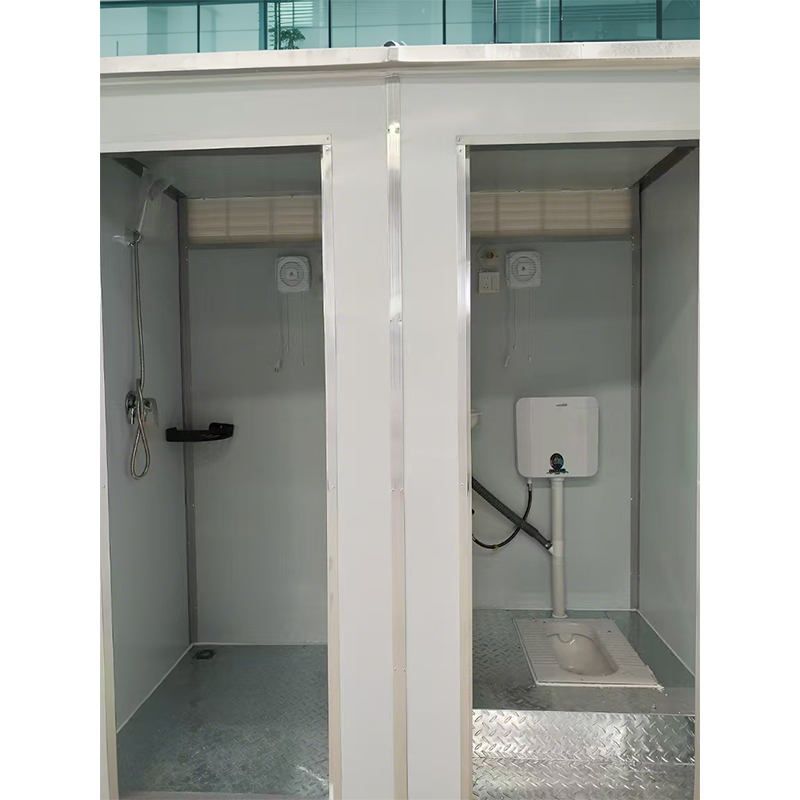

The internal space is reasonably planned, equipped with squat toilets/sit toilets, wash basins, mirrors, coat hooks and other facilities to meet basic toilet needs.
Multiple combination modes

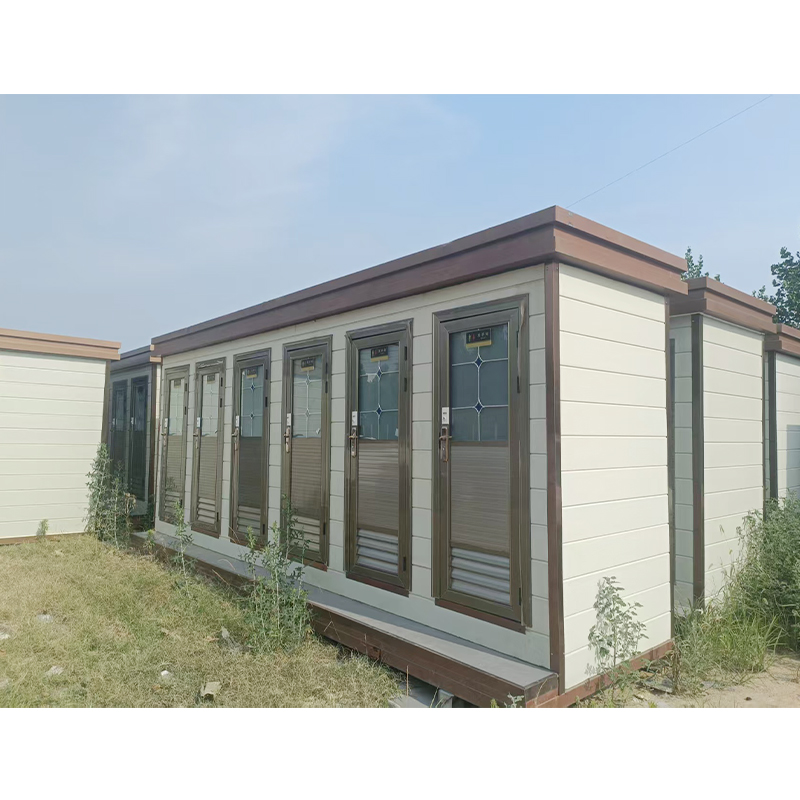

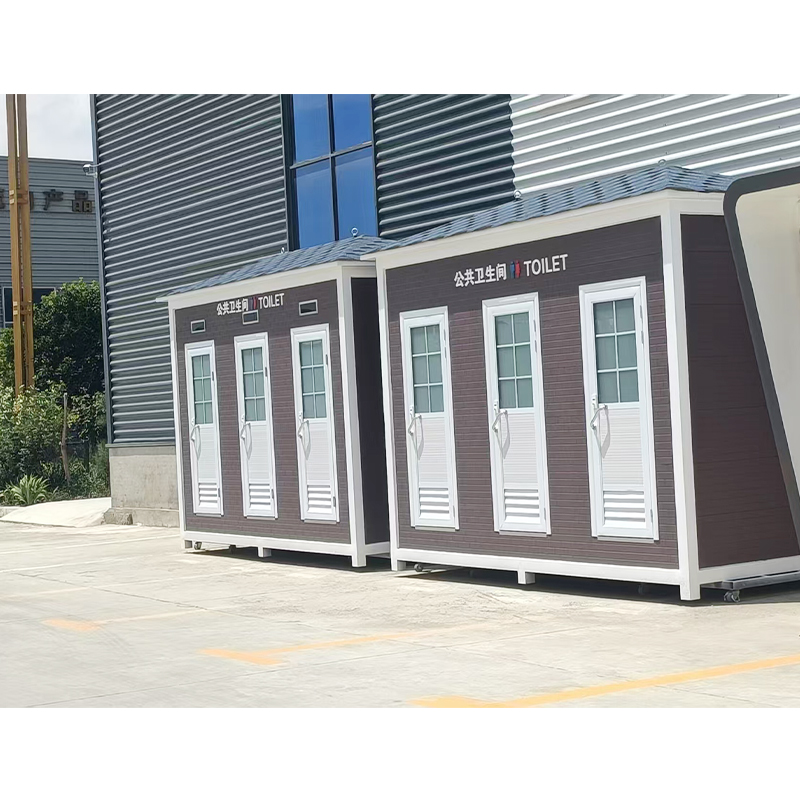

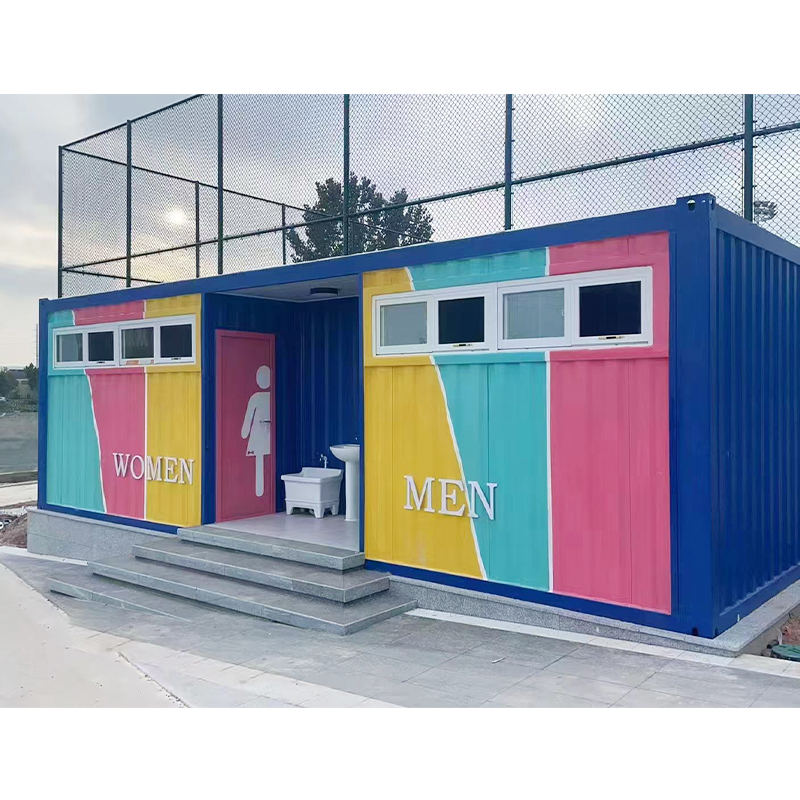

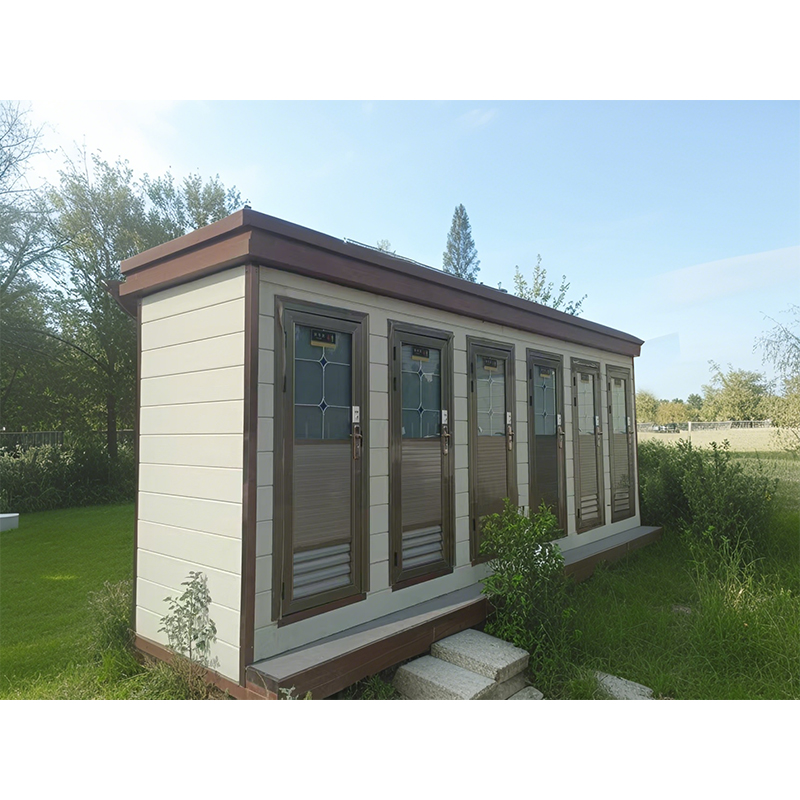

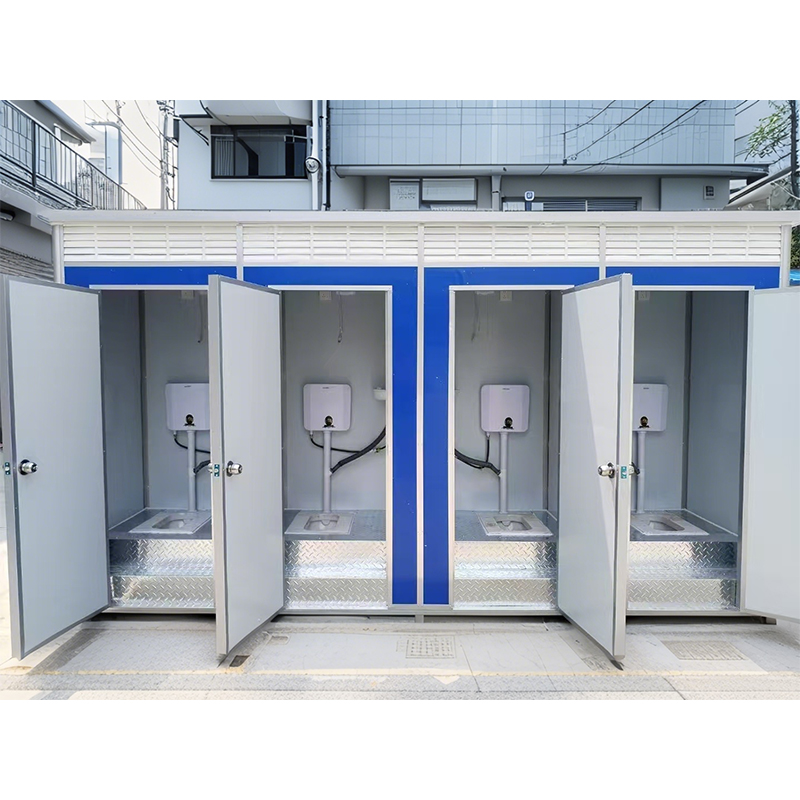

It can be spliced into a one-piece toilet (such as 2 toilets or 3 toilets in parallel) according to needs, or configured with male and female partitions, barrier-free toilets (width ≥ 1.5 meters, equipped with handrails), to adapt to large-scale crowds.
3. Durable materials, adaptable to complex environments
Corrosion resistance and strong weather resistance
The outer shell is commonly made of fiberglass reinforced plastic (FRP) or high-density polyethylene (HDPE), with a smooth surface and impact resistance, acid and alkali corrosion resistance, and UV aging resistance, with a service life of 5 to 10 years.
Insulation layer design (such as polyurethane foam filling) is optional in cold northern regions, which can withstand low temperatures of **-30℃** to prevent water pipes from freezing and cracking.
Wind and earthquake resistance
The overall structure is stable, and the wind resistance level can reach level 8 (wind speed ≤ 20.7m/s). Some models can withstand stronger winds after being fixed by anchor bolts.
The modular design reduces welding points and improves seismic performance, which is suitable for emergency scenarios such as earthquake-stricken areas.
4. Environmental protection and energy saving, low maintenance cost
Multiple sewage discharge methods
Water flushing: connect to the municipal pipe network or bring your own water tank (capacity 500~1000L), with septic tank or mobile sewage suction truck for treatment, hygienic and odorless.
Packaging: Use degradable plastic bags to collect waste, no water source is required, just replace the plastic bags, no sewage discharge, suitable for scenic spots and mountainous areas.
Use LED energy-saving lighting (power ≤10W) and induction faucets to reduce energy consumption, some models are equipped with solar panels to power lighting and ventilation fans.
Easy to clean and maintain
The inner wall is smooth and free of dirt, the sewage tank is detachable, supports mobile sewage suction truck extraction, and is easy to maintain.
V. Diverse functions, suitable for multiple scenarios
Complete basic functions
Standard ventilation system (exhaust fan or blinds) to keep air circulation.
Customized expansion
Luxury configuration: add air conditioning, heating, hot water for hand washing, dressing mirror, etc., suitable for high-end exhibitions and sports events.
Epidemic prevention function: During the epidemic, ultraviolet disinfection lamps and hand sterilizers can be customized, and the distance between toilets can be increased to more than 1.5 meters to reduce the risk of cross-infection.
Advertising: The shell can be customized with spray painting or LED display screens as a temporary advertising carrier (such as commercial activities and urban streets).
6. Significant cost advantages
Low one-time investment
Compared with traditional fixed toilets (which require infrastructure, pipelines, and decoration), the procurement cost of portable toilets is 30%~50% lower, which is especially suitable for temporary projects (such as construction sites and festivals).
High long-term reusability
After the project is completed, it can be moved to the next site as a whole, with a high reuse rate to avoid waste of resources.
Typical application scenarios
Outdoor activities: temporary gathering places such as music festivals, marathons, and camping sites.
Construction sites: Solve the toilet needs of construction workers and can be moved with the progress of the project.
Emergency rescue: Quickly build temporary sanitary facilities in disaster areas such as earthquakes and floods.
Tourist attractions: Supplement the shortage of fixed toilets and protect the natural environment (such as ecological packaged toilets).
Urban management: Convenient toilet points for temporary road construction and large-scale conferences.
1. Material and structural parameters
Shell material
FRP: density 1.5~2.0g/cm³, compressive strength ≥150MPa, weather resistance of more than 10 years, surface can be matte/bright.
Metal frame + color steel plate: steel thickness ≥1.2mm, color steel plate coating thickness ≥20μm, anti-rust treatment (galvanized or sprayed).
High-density polyethylene (HDPE): density 0.941~0.965g/cm³, impact strength ≥25kJ/m², acid and alkali corrosion resistance.
Insulation performance
Northern type products: wall filled with polyurethane foam (thickness 30~50mm, thermal conductivity ≤0.025W/(m・K)), resistant to -30℃ low temperature.
Southern type products: ventilation shutter area ≥0.1㎡, equipped with exhaust fan (air volume ≥200m³/h) to reduce stuffiness.
2. Functional system parameters
1. Water supply and energy-saving system
Water tank parameters: stainless steel or PE material, volume 500~1500L, equipped with water level display and anti-freeze electric heating (northern type).
Water efficiency: water output of induction faucet ≤0.1L/s, water consumption of single flush ≤3L (water flushing).
Power supply system:
Conventional: 220V AC, total power ≤200W (lighting + exhaust fan + flush valve).
2. Hygiene and safety system
Ventilation system: exhaust fan power ≤30W, ventilation frequency ≥10 times/hour, noise ≤55dB.
Disinfection configuration: UV lamp power 15~30W, irradiation time ≥30 minutes/time (optional timed automatic disinfection).
Emergency device: barrier-free toilets are equipped with call buttons (effective distance ≥50 meters), and emergency exit signs have brightness ≥15cd/㎡.
3. Environmental adaptability parameters
Temperature range
Conventional type: -10℃~40℃.
Wide temperature type: -30℃~50℃ (equipped with electric heating or air conditioning).
Humidity range: ≤95% RH (no condensation), dehumidifier can be installed in southern regions (dehumidification capacity ≥10L/day).
Anti-aging performance: After 500 hours of UV aging test, the color difference ΔE≤3 of the shell material, and the strength decrease is ≤10%.
4. Customized extended parameters
Luxury configuration: air conditioning power ≤1.5kW (cold and warm type), hot water device power ≤3kW (water temperature adjustable 40~60℃).
Intelligent system:
People flow counter (accuracy ≥95%).
Odor monitoring sensor (automatically starts exhaust when NH₃ concentration is >.10ppm).
Remote management platform (real-time monitoring of water level, power, and odor data through the Internet of Things module).
Appearance customization: Pantone color of the shell is optional, printing accuracy ≥720dpi, LED display screen size ≤1.2m×0.6m.
5. Selection suggestions
Short-term temporary scenes (such as exhibitions, construction sites): Water flushing or packaged type is preferred, with low cost and convenient maintenance.
Long-term fixed scenes (such as scenic spots, gas stations): Microbial degradation or foam plugging is recommended, which is environmentally friendly and reduces the frequency of operation and maintenance.
Extreme environment (cold/water-scarce areas): Choose insulation type + foam plugging or solar energy + packaged combination.
